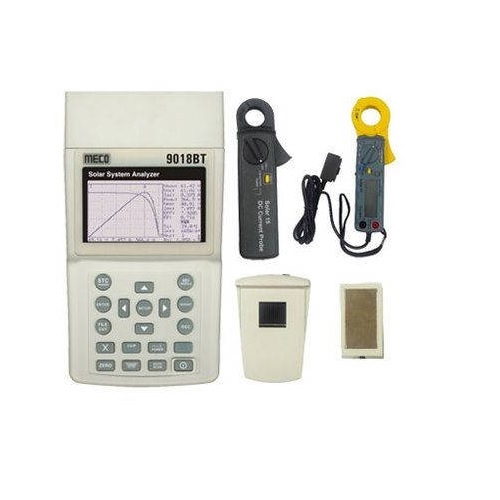

Photovoltaic I-V curve test for solar system - Max. solar system power (Pmax) search by Auto-scan: 1000V, 12A (12000W capability) - The analyzer and the Remote Solar Detector is connected by Bluetooth wireless communication (Bluetooth 2.1 + EDR Class 1) - The Remote Solar Detector is moisture-proof - Intelligent test logic with no personnel attendance required in the field - Solar system analyzer waits and tests the system until appropriate sunlight irradiance is detected - Max. voltage (Vpm) at Pmax, Max. current (Ipm) at Pmax - Voltage at open circuit (Voc), Current at short circuit (Isc) - Efficiency (%) calculation of solar system - Temperature measurement of solar panels - Irradiance measurement of sun light - Series resistance (Rs) calculation of solar panels - With data logging/open function, the I-V curves of solar system can be analysed / recorded for a period of time (e.g. 60 min.) - Conversion of I-V curve under OPC to data under standard test condition (STC) based upon IEC standard - Provide Operating Condition (OPC) and Standard Test Condition (STC) test reports for verification of solar panel performance (OK or NO OK) - Users can set up the parameters of solar panels - Users can set up the series number of solar panels. Parameters of many solar panels can be measured in one measurement - The Irradiances and Temperatures of solar panels can be continuously measured, monitored and recorded - Continuously measure/monitor/record the DC power output of solar system and the AC power output of inverter (1 phase or balanced 3 phases) - Calculate the efficiency of DC to AC power conversion and the efficiency of the max.output power. Standard Accessories: - Solar Irradiance Meter (Remote Solar Detector) x 1 - Thermometer x 1 - USB power cord x 1 - User manual x 1 - AC adaptor x 1 - Optical USB cable x 1 - Rechargeable lithium battery (3400mAh) x 1 (installed) - Software CD x 1 - Software manual x 1 - Carrying bag x 1 - Thermal conductive gel x 1 - Testing clips (1 black & 1 red) x 1 - 4-wire to 2-wire connecting cable x 1 - 4-wire testing cable x 1 - Solar 15: DC current probe x 1 - Solar 21: AC power clamp x 1 - Testing clips (1 black & 1 red) x 1
